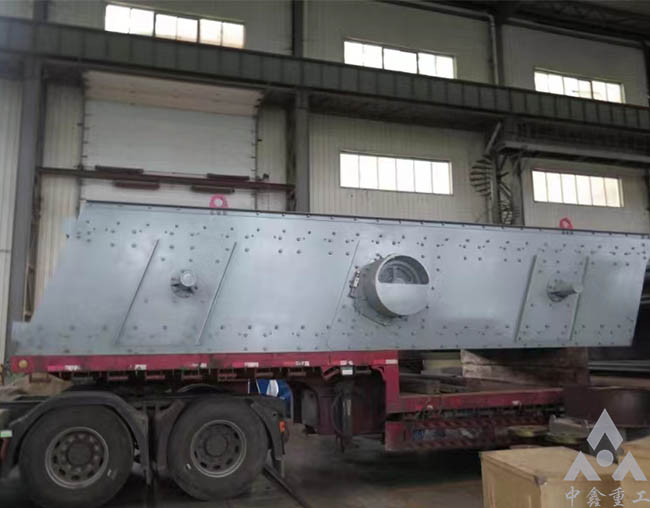

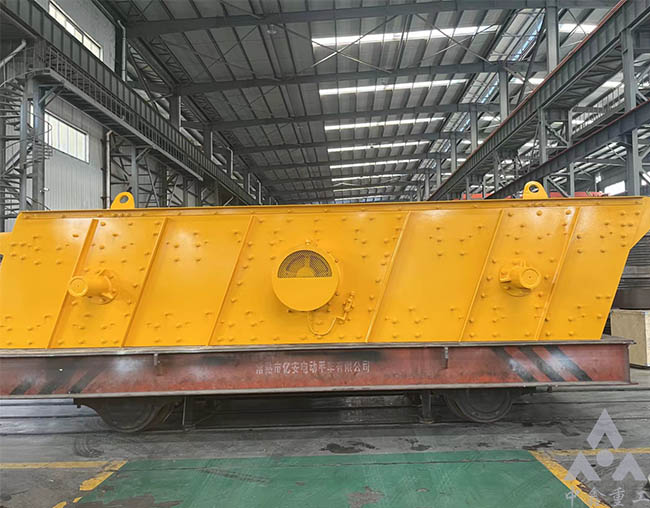

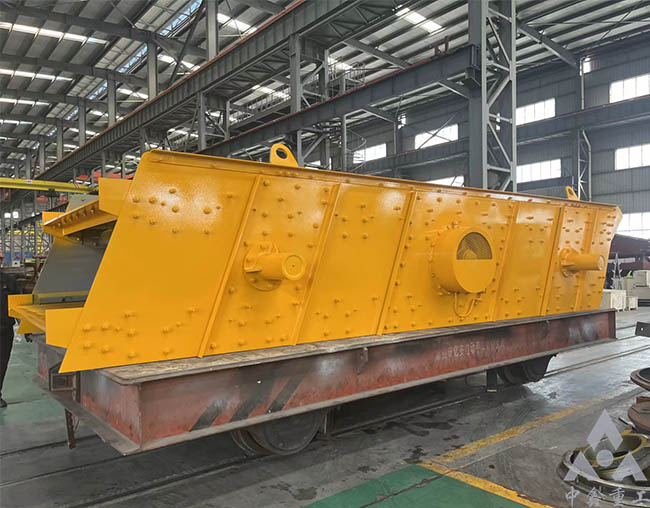

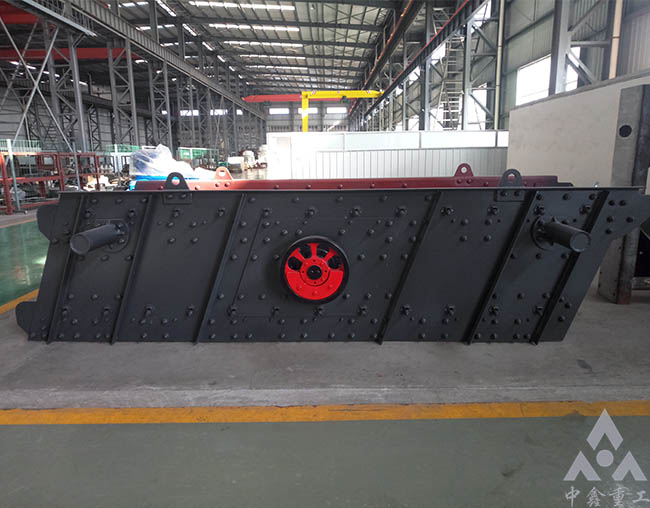

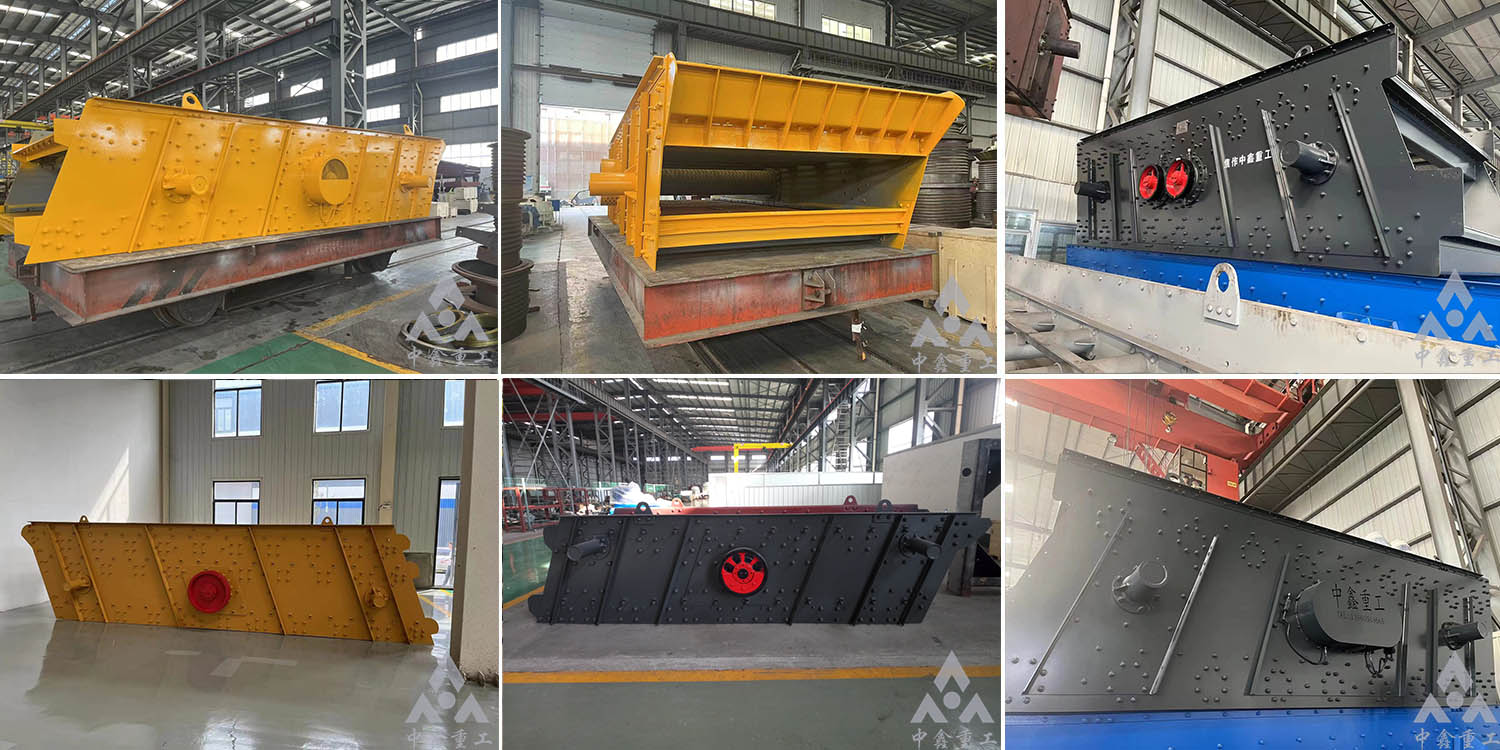

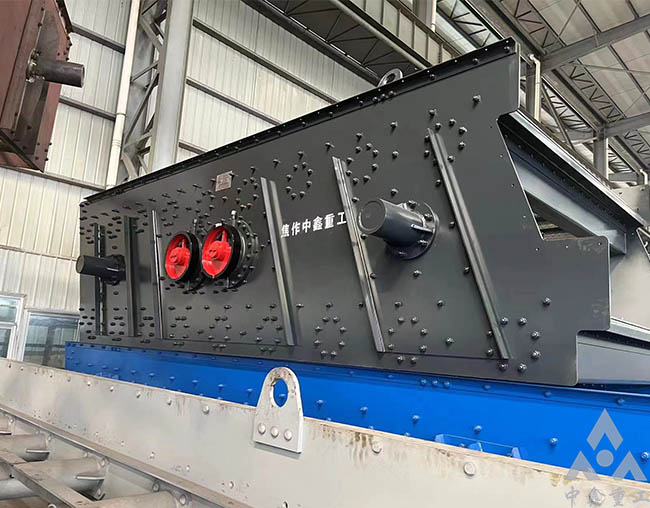

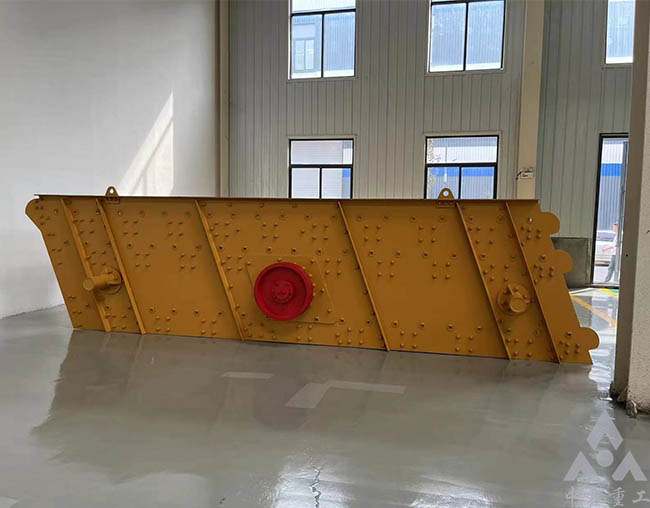

YA系列稀油潤滑圓振動篩一種高能效的篩分設備，廣泛用于多個行業。將原料分為多個粒度。這種篩分設備結構緊湊，易于操作和維護，減少停機維護時間。能夠提高生產效率，確保成品篩分產量。
產量
進料粒度
適用物料：河卵石、花崗巖、石灰石、石英石、煤矸石、硅、合金粉、鐵礦石、高嶺土等
應用領域：河卵石、花崗巖、石灰石、石英石、煤矸石、硅、合金粉、鐵礦石、高嶺土等
| 型號 Model |
篩網尺寸 Screen size (mm) |
篩網層數 Layers |
篩孔尺寸 Screen mesh (mm) |
最大進料尺寸Max feed size (mm) |
產量 Capacity (t/h) |
電機功率 Power (kw) |
振動頻率 Vibrating frequency (r/min) |
雙振幅 Double Amplifude (mm) |
| 2YA1237 | 3700×1200 |
2 | 3-80 | 100 | 10-80 |
11 | 750-950 |
6-9 |
| 3YA1237 | 3 | 3-80 | 100 | 15 | 6-9 | |||
| 4YA1237 | 4 | 3-80 | 100 | 18.5 | 6-9 | |||
| 2YA1548 | 4800×1500 |
2 | 3-80 | 100 | 30-200 |
18.5 | 750-950 |
6-9 |
| 3YA1548 | 3 | 3-80 | 100 | 18.5 | 6-9 | |||
| 4YA1548 | 4 | 5-80 | 100 | 30 | 6-9 | |||
| 2YA1860 | 6000×1800 |
2 | 3-80 | 100 | 60-300 |
22 | 750-950 |
6-9 |
| 3YA1860 | 3 | 3-80 | 100 | 30 | 6-9 | |||
| 4YA1860 | 4 | 3-80 | 100 | 45 | 6-9 | |||
| 2YA2160 | 6000×2100 |
2 | 3-80 | 100 | 80-400 |
30 | 700-900 |
6-9 |
| 3YA2160 | 3 | 3-80 | 100 | 37 | 6-9 | |||
| 4YA2160 | 4 | 3-80 | 100 | 45 | 6-9 | |||
| 2YA2460 | 6000×2400 |
2 | 5-80 | 100 | 100-500 |
37 | 700-900 |
6-9 |
| 3YA2460 | 3 | 5-80 | 100 | 37 | 6-9 | |||
| 4YA2460 | 4 | 5-80 | 100 | 45 | 6-9 | |||
| 2YA2675 | 7500×2600 | 2 | 5-80 | 100 | 150-480 | 45 | 700-900 | 6-9 |
| 3YA2675 | 3 | 5-80 | 100 | 30×2 | 6-9 | |||
| 2YA2870 | 7000×2800 | 2 | 5-80 | 100 | 150-550 | 30×2 | 700-900 | 6-9 |
| 3YA2870 | 3 | 5-80 | 100 | 37×2 | 6-9 | |||
| 2YA3072 | 7200×3000 |
2 | 5-80 | 100 | 150-600 |
30×2 | 700-900 |
6-9 |
| 3YA3072 | 3 | 5-80 | 100 | 37×2 | 6-9 | |||
| 4YA3072 | 4 | 5-80 | 100 | 37×2 | 6-9 | |||
| 2YA3675 | 7500×3600 | 2 | 5-80 | 100 | 200-1000 | 37×2 | 700-900 | 6-9 |
| 3YA3675 | 3 | 5-80 | 100 | 45×2 | 6-9 |
